ABBControl protection switch
In Stock

E219-2CD

Product ID:86488
Updated: 2026/4/3

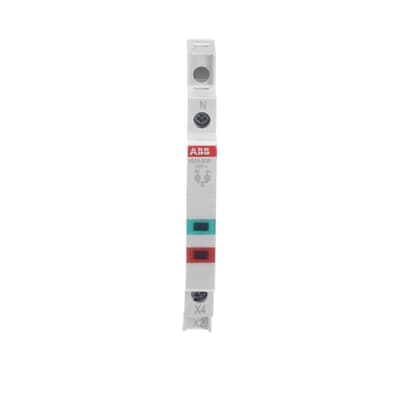

ABB E219-2CD

Key Features

  • 1Fit into 9mm wide spaces for compact panel designs. 2、Display clear status with dual green and red LEDs. 3、Operate on versatile 115-230VAC power supply. 4、Ensure long-term reliability with 50,000-hour LED lifespan. 5、Meet EN 62094-1 and UL508 safety standards.
Product Details
E219-2CD
ABB

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Standards
EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508
Rated Voltage (Ur)
230 V
Rated Operational Voltage
115 ... 230 V AC
Rated Insulation Voltage (Ui)
250 V
Voltage Range
115 ... 250 V AC
Rated Impulse Withstand Voltage (Uimp)
4 kV
Auxiliary Voltage AC/DC
LED Indicator 115...250 V AC
Input Voltage Type
AC
Rated Current (In)
16 A
Rated Frequency (f)
50/60 Hz
Power Loss
0.47-1 W
Power Watt
0.8 W
Number of LEDs
2
Tightening Torque
1.2-1.5 N·m
Lamp Type
LED
Switch Type
Double Interrupting Contacts
Material of Conductor
Copper
Remarks
Sealable in the On and Off positions
Color
Green, red
Lamp Color
Red / Green
Connecting Capacity
Solid 1x1…6 mm² Solid 2x2.5 mm² Flexible 1x0.75…2x2.5 mm²
Service Life
LED Indicator 50000 hour
Ambient Air Temperature
Operation -25...+55 °C Storage -40...+70 °C
Environmental Information
2CCC441002C0201
Short-Circuit Current Rating (SCCR)
3 kA
Width in Number of Modular Spacings
0.5
Product Net Width
9 mm
Product Net Height
85 mm
Product Net Depth / Length
68 mm
Product Net Weight
45 g
Built-In Depth (t2)
68 mm
ETIM 8
EC001657 - Indicator light for distribution board
ETIM 9
EC001657 - Indicator light for distribution board
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CN8
85365053
eClass
V11.0 : 27142324
Object Classification Code
P
Manufacturer ID
2CCA703910R0001

Specifications may be subject to change without notice
