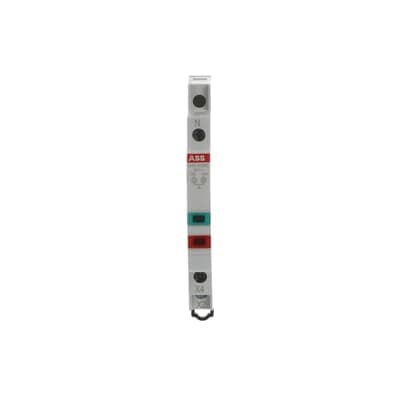

E219-2CD48
Product ID:86490
Updated: 2026/7/14
Key Features
- 1Equip with 2 red and green LEDs for clear status indication.
- 2Operate on a wide 12-48VAC range for versatile applications.
- 3Feature maintenance-free LEDs with up to 50,000 hours lifespan.
- 4Install easily in compact spaces measuring 85mm x 68mm x 45g.
- 5Comply with EN60068-2-1, EN60068-2-2, and DIN EN 62094-1 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 48 V |
| Rated Operational Voltage | 12 ... 48 V AC | Rated Insulation Voltage (Ui) | 250 V |
| Voltage Range | 12 ... 48 V AC | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Auxiliary Voltage AC/DC | LED Indicator 12â¦24 V AC | Input Voltage Type | AC/DC |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.47-1 W | Power Watt | 1.2 W |
| Number of LEDs | 2 | Tightening Torque | 1.2-1.5 N·m |
| Lamp Type | LED | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Green, red | Lamp Color | Red / Green |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Service Life | LED Indicator 50000 hour |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441002C0201 | Short-Circuit Current Rating (SCCR) | 3 kA |
| Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 45 g | Built-In Depth (t2) | 59 mm |
| ETIM 8 | EC001657 - Indicator light for distribution board | ETIM 9 | EC001657 - Indicator light for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | eClass | V11.0 : 27142324 |
| Object Classification Code | P | Manufacturer ID | 2CCA703911R0001 |
Specifications may be subject to change without notice
