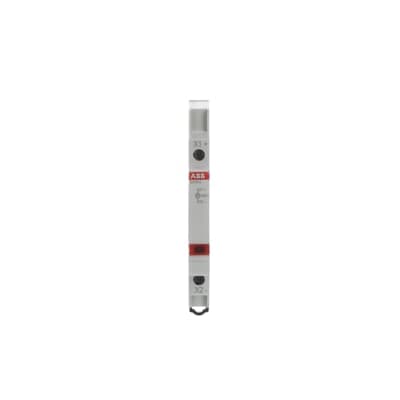

E219-C220
Product ID:86051
Updated: 2026/4/3
Key Features
- 1Extend operational life with a high-quality LED rated for 50,000 hours. 2、Handle robust 16A current within a wide 60-220V DC voltage range. 3、Save panel space using the compact 0.5 modular spacing design. 4、Ensure clear visibility with the bright red LED indicator in various environments. 5、Meet international safety and performance standards including EN60068-2-1 and UL508.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 220 V | Rated Insulation Voltage (Ui) | 250 V |
| Voltage Range | 60 ... 220 V DC | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Auxiliary Voltage AC/DC | LED Indicator 60â¦220 V AC | Input Voltage Type | DC |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.47-1 W | Power Watt | 1 W |
| Number of LEDs | 2 | Tightening Torque | 1.2-1.5 N·m |
| Lamp Type | LED | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Red | Cover Color | Red |
| Lamp Color | Red | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Service Life | LED Indicator 50000 hour | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441002C0201 |
| Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 43 g |
| Built-In Depth (t2) | 59 mm | ETIM 8 | EC001657 - Indicator light for distribution board |
| ETIM 9 | EC001657 - Indicator light for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142324 | Object Classification Code | P |
| Manufacturer ID | 2CCA703406R0001 |
Specifications may be subject to change without notice
