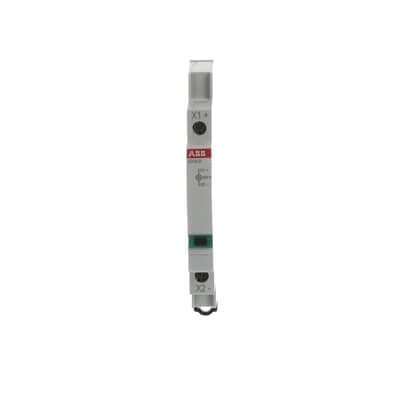

E219-D48
Product ID:82726
Updated: 2026/4/3
Key Features
- 1Ensure 50,000-hour service life with durable LED technology. 2、Operate across versatile 12-48V and 115-250VAC/DC ranges. 3、Integrate seamlessly into panels with a compact 9x85 mm design. 4、Provide safe operation with 250V high insulation voltage rating. 5、Build reliability with copper conductors and double contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 48 V |
| Rated Operational Voltage | 12 ... 48 V | Rated Insulation Voltage (Ui) | 250 V |
| Voltage Range | 12 ... 48 V AC/DC | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Auxiliary Voltage AC/DC | LED Indicator 12â¦48 V AC | Input Voltage Type | AC/DC |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.47-1 W | Power Watt | 0.47 W |
| Number of LEDs | 2 | Tightening Torque | 1.2-1.5 N·m |
| Lamp Type | LED | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Green | Cover Color | Green |
| Lamp Color | Green | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Service Life | LED Indicator 50000 hour | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441002C0201 |
| Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 43 g |
| Built-In Depth (t2) | 59 mm | ETIM 8 | EC001657 - Indicator light for distribution board |
| ETIM 9 | EC001657 - Indicator light for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142324 | Object Classification Code | P |
| Manufacturer ID | 2CCA703422R0001 |
Specifications may be subject to change without notice
