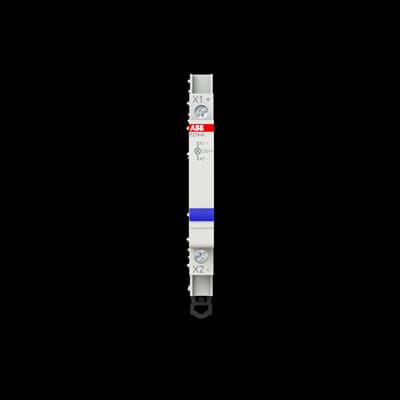

E219-G220
Product ID:84283
Updated: 2026/4/3
Key Features
- 1Utilize a maintenance-free, long-lasting blue LED for energy efficiency. 2、Operate across a versatile voltage range from 12-250V AC/DC. 3、Install easily with a compact 9mm width on DIN rails. 4、Ensure reliability with IP20 protection in various environments. 5、Indicate operating states clearly in distribution boards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 | Rated Voltage (Ur) | 230 V |
| Rated Insulation Voltage (Ui) | 250 V | Voltage Range | 60 ... 220 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Auxiliary Voltage AC/DC | LED Indicator 60â¦220 V AC |
| Input Voltage Type | DC | Rated Current (In) | 16 A |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 0.47-1 W |
| Power Watt | 1 W | Number of LEDs | 2 |
| Tightening Torque | 1.2-1.5 N·m | Lamp Type | LED |
| Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions | Color | Blue |
| Cover Color | Blue | Lamp Color | Blue |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Service Life | LED Indicator 50000 hour |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441002C0201 | Short-Circuit Current Rating (SCCR) | 3 kA |
| Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 43 g | Built-In Depth (t2) | 59 mm |
| ETIM 8 | EC001657 - Indicator light for distribution board | ETIM 9 | EC001657 - Indicator light for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | eClass | V11.0 : 27142324 |
| Object Classification Code | P | Manufacturer ID | 2CCA703409R0001 |
Specifications may be subject to change without notice
