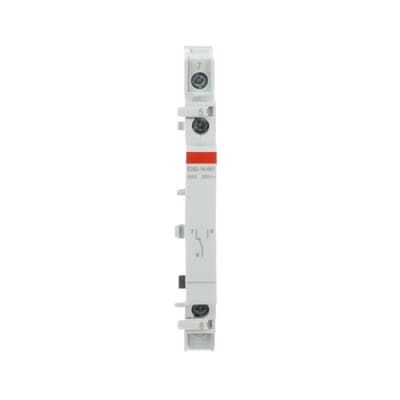

E292-16-001
Product ID:81279
Updated: 2026/4/3
Key Features
- 1Realize simple, energy-saving, and efficient lighting control systems with the E292-16-001 latching relay. 2、Suitable for private houses, factory premises, commercial and public buildings, and industrial plants. 3、Feature a safe and reliable interlock mechanism, ensuring consistent operation. 4、Build with durable materials and designed to withstand various environmental conditions. 5、Integrate easily into existing systems with DIN rail mounting compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Mechanical latching relay main contact module |
| Rated Voltage (Ur) | 250 V AC | Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 16 A | Maximum Control Current DC | 8 A |
| Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | 0.32 W | Number of Contacts CO | 1 |
| Number of Main Contacts NC | 1 | Number of Main Contacts NO | 1 |
| Tightening Torque | 1.2 - 1.5 N·m | Accessory Type | Connecting bridge |
| Contact Type | Change-Over (CO) | Mounting Type | DIN-Rail |
| RAL Number | RAL 7035 - Light Grey | Color | Grey |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Environmental Information | 2CCC441012D0202 | Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC000188 - Latching relay |
| ETIM 9 | EC000188 - Latching relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85362020 |
| eClass | V11.0 : 27371692 | Object Classification Code | K |
| Manufacturer ID | 2CCA704302R0001 |
Specifications may be subject to change without notice
