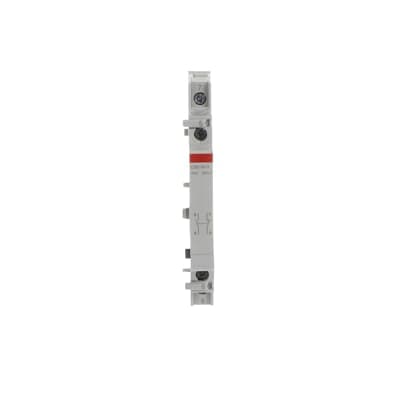

E292-16-11
Product ID:81200
Updated: 2026/7/14
Key Features
- 1Ensure efficient and reliable lighting control with electromagnetic operation.
- 2Simplify installation with versatile DIN rail mounting design.
- 3Support a wide range of applications with 16A and 32A rated currents.
- 4Enable multi-location control via impulse button operation.
- 5Meet compliance standards including EU Directive 2011/65/EU.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Mechanical latching relay main contact module |
| Rated Voltage (Ur) | 250 V AC | Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 16 A | Maximum Control Current DC | 8 A |
| Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | 0.32 W | Number of Contacts NC | 1 |
| Number of Contacts NO | 1 | Number of Main Contacts NC | 1 |
| Number of Main Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Connecting bridge | Mounting Type | DIN-Rail |
| RAL Number | RAL 7035 - Light Grey | Color | Grey |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Environmental Information | 2CCC441012D0202 | Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC000188 - Latching relay |
| ETIM 9 | EC000188 - Latching relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85362020 |
| eClass | V11.0 : 27371692 | Object Classification Code | K |
| Manufacturer ID | 2CCA704301R0001 |
Specifications may be subject to change without notice
