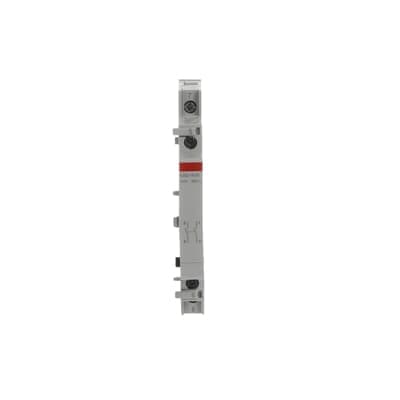

E292-16-20
Product ID:81282
Updated: 2026/4/3
Key Features
- 1Achieve efficient lighting control for energy savings. 2、Apply to homes, factories, and commercial buildings. 3、Ensure safe interlock with each coil pulse. 4、Rely on durable 16/32A rated design. 5、Combine accessories for versatile market use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Mechanical latching relay main contact module |
| Rated Voltage (Ur) | 250 V AC | Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Current (In) | 16 A | Maximum Control Current DC | 8 A |
| Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | 0.64 W | Number of Contacts NO | 2 |
| Number of Main Contacts NC | 0 | Number of Main Contacts NO | 2 |
| Number of Auxiliary Contacts NO | 2 | Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Connecting bridge | Contact Type | Normally Open (NO) |
| Mounting Type | DIN-Rail | RAL Number | RAL 7035 - Light Grey |
| Color | Grey | Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Environmental Information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 58 mm |
| Product Net Weight | 45 g | Dimension Diagram | 9AKK107992A6182 |
| ETIM 8 | EC000188 - Latching relay | ETIM 9 | EC000188 - Latching relay |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85362020 | UNSPSC | 39122317 |
| eClass | V11.0 : 27371692 | IDEA Granular Category Code (IGCC) | 5351 >> Latching relay |
| Object Classification Code | K | Manufacturer ID | 2CCA704300R0001 |
Specifications may be subject to change without notice
