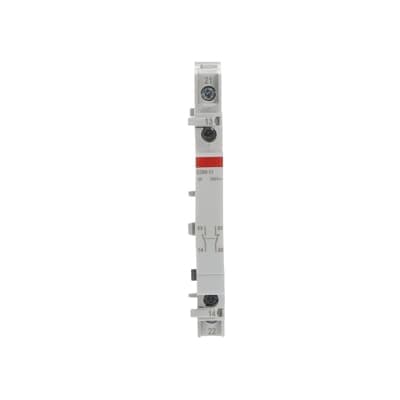

E299-11
Product ID:69493
Updated: 2026/7/14
Key Features
- 1Mount easily on DIN rails for quick industrial installation.
- 2Switch reliably with a 1NO+1NC contact configuration.
- 3Handle loads up to 5A for versatile application use.
- 4Integrate seamlessly with the ABB E297 relay series.
- 5Comply with EU RoHS standards for environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Auxiliary Contact |
| Rated Voltage (Ur) | 250 V AC | Maximum Control Current DC | 5 A |
| Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | 0.1 W | Number of Contacts NC | 1 |
| Number of Contacts NO | 1 | Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Other | Mounting Type | DIN-Rail |
| RAL Number | RAL 7035 - Light Grey | Color | Grey |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Environmental Information | 2CCC441012D0202 |
| Product Net Width | 18 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC001652 - Installation relay |
| ETIM 9 | EC001652 - Installation relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85362020 |
| eClass | V11.0 : 27371692 | Object Classification Code | K |
| Manufacturer ID | 2CCA704340R0001 |
Specifications may be subject to change without notice
