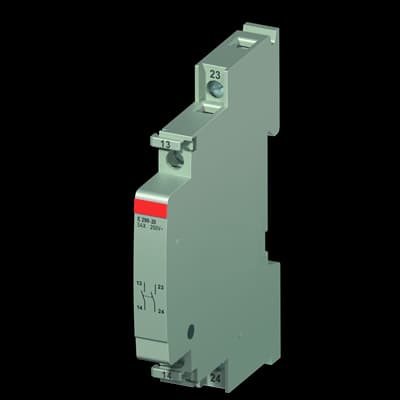

E299-20
Product ID:69778
Updated: 2026/7/14
Key Features
- 1Ensure reliable 5A switching performance in demanding conditions.
- 2Mount easily on DIN rails to save panel space and time.
- 3Integrate seamlessly with various relay and control systems.
- 4Reduce maintenance costs with a robust and long-lasting design.
- 5Enhance system safety and compliance for industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Auxiliary Contact |
| Rated Voltage (Ur) | 250 V AC | Maximum Control Current DC | 5 A |
| Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | 0.1 W | Number of Contacts NO | 2 |
| Number of Main Contacts NC | 0 | Number of Main Contacts NO | 0 |
| Number of Auxiliary Contacts NO | 2 | Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Other | Mounting Type | DIN-Rail |
| RAL Number | RAL 7035 - Light Grey | Color | Grey |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Product Net Width | 18 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 58 mm |
| Product Net Weight | 45 g | Dimension Diagram | 9AKK107992A6182 |
| ETIM 8 | EC001652 - Installation relay | ETIM 9 | EC001652 - Installation relay |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85362020 | eClass | V11.0 : 27371692 |
| Manufacturer ID | 2CCA704341R0001 |
Specifications may be subject to change without notice
