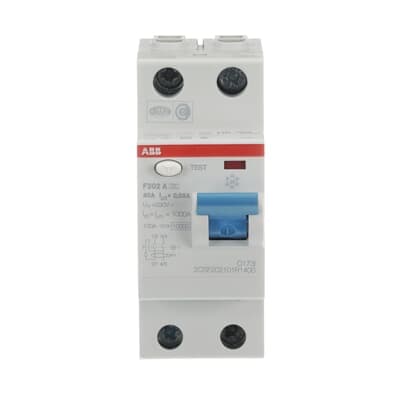

F202 A-40/0.03
Product ID:69098
Updated: 2026/4/3
Key Features
- 1Protect against sinusoidal AC and pulsating DC earth fault currents. 2、Apply in residential, commercial, and industrial electrical settings. 3、Detect residual currents as low as 30 mA for direct contact safety. 4、Meet IEC/EN 61008 and UL 1053 standards for guaranteed reliability. 5、Install easily with DIN-rail mounting for straightforward system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008 UL 1053 | Type of Residual Current | Type A |
| Rated Voltage (Ur) | 230 V | Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 170-254 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 40 A | Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Leakage Current Type | A |
| Frequency (f) | 50/60 Hz | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle | Number of Poles | 2 |
| Number of Modular Spacings per DIN Rail | 2 | Operating Characteristic | Instantaneous |
| Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release Home automatic resetting unit |
| Mounting Type | DIN-Rail | Options Provided | None |
| Mounting Position | Any | Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 25...25 mm² |
| Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
| Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Maximum Operating Voltage UL/CSA | 277 V AC | Short-Circuit Current Rating (SCCR) | 30 mA |
| Width in Number of Modular Spacings | 2 | Product Net Width | 35 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g | Built-In Depth (t2) | 69 mm |
| Dimension Diagram | 9AKK106354A0758 | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| UNSPSC | 39121601 | eClass | V11.0 : 27142201 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
| Manufacturer ID | 2CSF202101R1400 |
Specifications may be subject to change without notice
