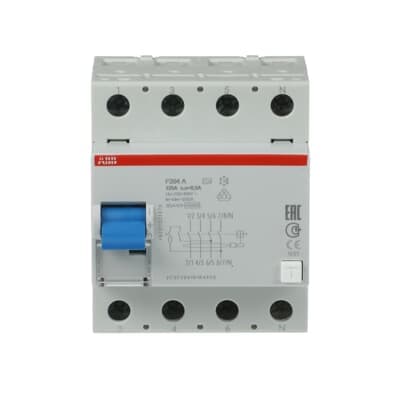

F204 A-125/0.5
Product ID:69199
Updated: 2026/4/3
Key Features
- 1Provide comprehensive protection against earth fault currents. 2、Respond instantly to faults with an instantaneous operating characteristic. 3、Cater to various needs with standard or selective configurations. 4、Save space with the System pro M compact design. 5、Ensure international compliance with IEC/EN 61008 and UL 1053.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008 | Type of Residual Current | Type A |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 100-250 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 125 A | Rated Residual Current | 500 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 Hz | Power Loss | at Rated Operating Conditions per Pole 7.5 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous | Position of Neutral Terminals | Right |
| Tightening Torque | 2.8 N·m | Accessory Type | Signal/Auxiliary contact Motor operating device |
| Mounting Type | DIN-Rail | Options Provided | None |
| Mounting Position | Any | Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 35...35 mm² |
| Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
| Pollution Degree | 2 | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 500 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69.5 mm | Product Net Weight | 500 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSF204101R4950 |
Specifications may be subject to change without notice
