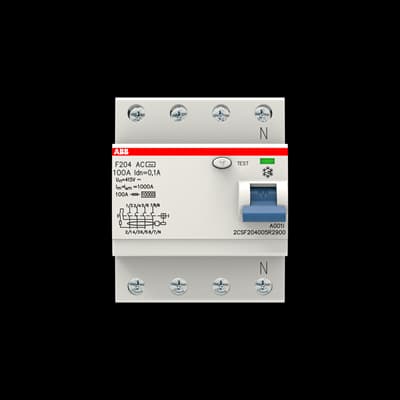

F204 AC-100/0.1 IEC
Product ID:69329
Updated: 2026/4/3
Key Features
- 1Ensure safety by interrupting fault currents to earth. 2、Meet IEC 61008 and UL 1053 standards for reliability. 3、Respond quickly to ground faults for immediate protection. 4、Withstand harsh environments with vibration resistance. 5、Install easily with DIN rail mounting compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61008 | Type of Residual Current | Type AC |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110-254 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 100 A | Rated Residual Current | 100 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | AC | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | at Rated Operating Conditions per Pole 8.2 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous | Position of Neutral Terminals | Right |
| Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release |
| Mounting Type | DIN-Rail | Options Provided | None |
| Mounting Position | Any | Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...35 mm² 1 - Solid-Core 35...35 mm² |
| Wire Stripping Length | Top 12.7 mm Bottom 14.9 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
| Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 100 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSF204005R2900 |
