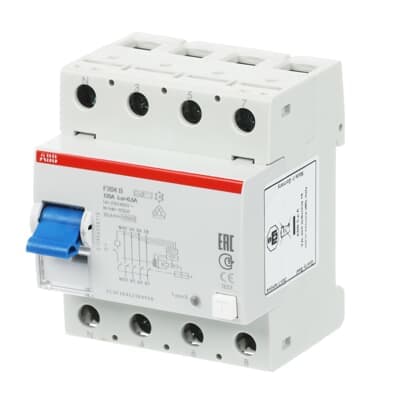

F204 B-125/0.5-L
Product ID:69093
Updated: 2026/7/14
Key Features
- 1Safeguard people and installations from earth fault currents.
- 2Select from AC and A types for diverse applications.
- 3Handle high loads reliably with a 125 A rated current.
- 4Install easily in tight spaces with a compact design.
- 5Meet EN 61008 standards for guaranteed safety compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 400 V | Test Voltage (Ut) | 200â¦440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 125 A | Rated Residual Current | 500 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 3 kA | Leakage Current Type | B |
| Frequency (f) | 50 Hz | Rated Frequency (f) | 50 Hz |
| Power Loss | Total 35.8 W at Rated Operating Conditions per Pole 11.2 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 2000 cycle | Number of Poles | 4 |
| Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Instantaneous (APR High Immunity) |
| Position of Neutral Terminals | Left | Tightening Torque | 3 N·m |
| Accessory Type | Signal/Auxiliary contact Motor operating device | Actuator Type | Toggle - Insulation group I - II, RAL 5021 |
| Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
| Options Provided | None | Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 50â¦50 mm² |
| Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | Terminals IP20 Housing IP40 |
| Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 500 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 75 mm | Product Net Weight | 500 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSF204523R4950 |
Specifications may be subject to change without notice
