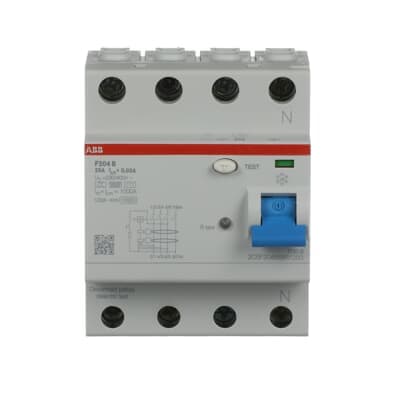

F204 B-25/0.03
Product ID:81768
Updated: 2026/4/3
Key Features
- 1Protect against smooth d.c. earth fault currents for installation safety. 2、Ensure reliability with high immunity and instantaneous operation. 3、Simplify installation using compact DIN rail mounting design. 4、Achieve efficient operation at 50 Hz with 7.5 W per pole loss. 5、Comply with EU RoHS standards including Directive 2011/65/EU.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 ⦠400 V AC |
| Rated Insulation Voltage (Ui) | 440 V | Test Voltage (Ut) | 170 ... 253 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2500 V |
| Input Voltage Type | AC | Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA | Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
| Impulse Current | I (max, 8 / 20 µs) 3000 A | Maximum Surge Current | 3 kA |
| Leakage Current Type | B | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Total 3.42 W at Rated Operating Conditions per Pole 0.74 W |
| Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous (APR High Immunity) | Overvoltage Category | III |
| Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
| Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 10 ms | Accessory Type | Auxiliary contact Signal contact/auxiliary contact Shunt trip Undervoltage release Overvoltage release Motor operating device Auto reclosing unit |
| Actuator Type | Toggle - Insulation group I - II, RAL 5015 | Housing Type | Insulation group I - II, RAL 7035 |
| Mounting Type | DIN-Rail | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Options Provided | None | Mounting Position | Any |
| Accessories Available | Yes | Number of Batteries | 0 |
| Cable Size | 25 mm² | Connecting Capacity | Busbar 10 mm² Flexible 1 ... 25 mm² Stranded 1 ... 25 mm² |
| Rated Cross-Section | 1 - Solid-Core 1 ... 25 mm² | Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25...+70 °C Storage -40â¦+70 °C |
| Degree of Protection | Terminals IP20 Housing IP40 | Pollution Degree | 2 |
| Environmental Conditions | 28 cycle with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
| Built-In Depth (t2) | 69 mm | Dimension Diagram | 9AKK106354A0759 |
| ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363030 | UNSPSC | 39121601 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSF204568R1250 |
Specifications may be subject to change without notice
