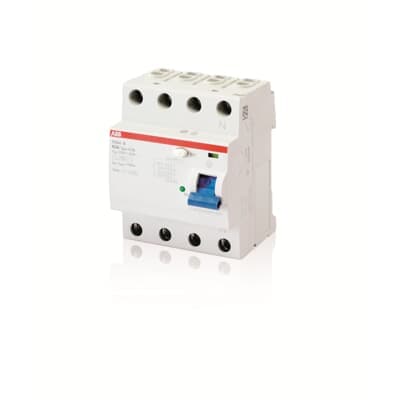

F204 B-63/0.3
Product ID:68954
Updated: 2026/4/3
Key Features
- 1Ensure safety by detecting and interrupting earth fault currents. 2、Comply with international IEC standards for global requirements. 3、Install easily on DIN rails for space-saving setups. 4、Operate reliably with high immunity against overvoltages. 5、Minimize energy use with a low 15.6W power loss.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Current (In) | 63 A | Rated Residual Current | 300 mA |
| Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Total 15.6 W at Rated Operating Conditions per Pole 4.8 W |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous (APR High Immunity) | Position of Neutral Terminals | Right |
| Actuator Type | Toggle - Insulation group I - II, RAL 5015 | Housing Type | Insulation group I - II, RAL 7035 |
| Options Provided | None | Ambient Air Temperature | Operation -25...+40 °C Storage -35â¦+75 °C |
| Degree of Protection | Terminals IP20 Housing IP40 | Environmental Information | S-P-00081 |
| Short-Circuit Current Rating (SCCR) | 300 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 75 mm | Product Net Weight | 460 g |
| ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85363030 | eClass | V11.0 : 27142201 |
| Object Classification Code | F | Manufacturer ID | 2CSF204501R3630 |
Specifications may be subject to change without notice
