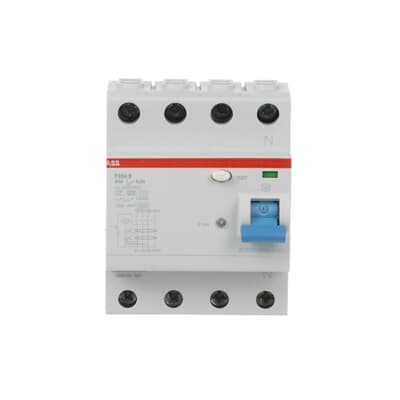

F204 B-63/0.5
Product ID:68912
Updated: 2026/7/14
Key Features
- 1Protect against smooth DC earth fault currents for enhanced safety.
- 2Deliver reliable operation with 63A rated and 500mA residual current.
- 3Install easily on DIN rails for quick, secure mounting.
- 4Provide selective protection to distinguish between fault types.
- 5Meet IEC/EN 61008 standards for guaranteed compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, EN 62423 | Type of Residual Current | Type B |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 ⦠400 V AC |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110 ... 253 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2500 V |
| Input Voltage Type | AC | Rated Current (In) | 63 A |
| Rated Residual Current | 500 mA | Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
| Maximum Surge Current | 3 kA | Leakage Current Type | B |
| Frequency (f) | 50/60 Hz | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | Total 17.9 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle | Number of Poles | 4 |
| Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Instantaneous (APR High Immunity) |
| Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
| Accessory Type | Auxiliary contact Signal contact/auxiliary contact Shunt trip Undervoltage release Overvoltage release Motor operating device Auto reclosing unit | Actuator Type | Toggle - Insulation group I - II, RAL 5015 |
| Housing Type | Insulation group I - II, RAL 7035 | Mounting Type | DIN-Rail |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Options Provided | None |
| Accessories Available | Yes | Cable Size | 25 mm² |
| Connecting Capacity | Busbar 10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 25...25 mm² |
| Wire Stripping Length | 12 mm | Ambient Air Temperature | Operation -25...+50 °C Storage -40â¦+70 °C |
| Degree of Protection | Terminals IP20 Housing IP40 | Pollution Degree | 2 |
| Environmental Conditions | 28 cycle with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 500 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 380 g |
| Built-In Depth (t2) | 69 mm | Dimension Diagram | 9AKK106354A0759 |
| ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363030 | eClass | V11.0 : 27142201 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
| Manufacturer ID | 2CSF204592R4630 |
Specifications may be subject to change without notice
