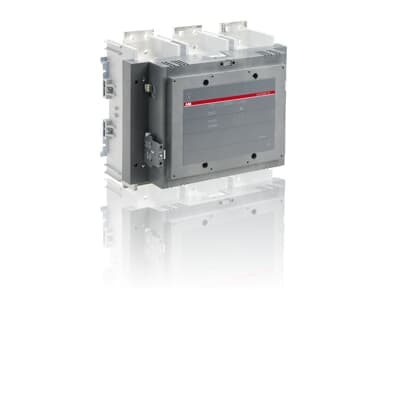

GAF2050-10-11 48-130V DC
Product ID:89482
Updated: 2026/7/14
Key Features
- 1Handle high-voltage DC applications up to 1000V.
- 2Operate reliably with 48-130V DC or AC power.
- 3Integrate easily using compact 555x365x500mm dimensions.
- 4Ensure stable performance with built-in surge suppression.
- 5Connect seamlessly to AF contactors and PLC interfaces.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
| Product Net Height | 392 mm | Product Net Weight | 33 kg |
| Number of Main Contacts NO | 1 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 1000 V DC | Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V 60 Hz 48...130 V DC Operation 48...130 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage DC 16 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 1900 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 1900 V·A Pull-in at Max. Rated Control Circuit Voltage DC 1700 V·A | Terminal Type | Main Circuit: Bars |
| Object Classification Code | Q | ETIM 7 | EC002552 - Power contactor, DC switching |
| ETIM 8 | EC002552 - Power contactor, DC switching | ETIM 9 | EC002552 - Power contactor, DC switching |
| eClass | V11.0 : 27371018 | UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4763 >> Power contactor, DC switching | Manufacturer ID | 1SFL707025R6911 |
Specifications may be subject to change without notice
