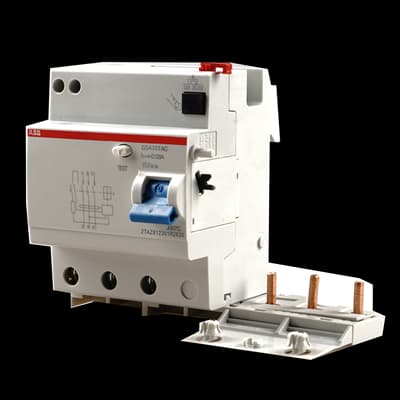

GDA203 A S-63/0.1
Product ID:80594
Updated: 2026/4/3
Key Features
- 1Comply with GB14048.6-2008, IEC60947-1, and UL508 standards. 2、Detect faults precisely with 0.1A high sensitivity. 3、Withstand harsh industrial environments via robust design. 4、Protect diverse machinery and equipment applications. 5、Enhance safety with advanced shock prevention features.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of Residual Current | Type A | Rated Voltage (Ur) | 400...400 V |
| Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A | Rated Residual Current | 100 mA |
| Maximum Surge Current | 3 kA | Leakage Current Type | A |
| Rated Frequency (f) | 50 ⦠60 Hz | Number of Poles | 3 |
| Operating Characteristic | Selective | Connecting Capacity | Rigid 25 ⦠25 mm² Flexible 25 ⦠25 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP2X | Pollution Degree | 2 |
| Short-Circuit Current Rating (SCCR) | 0.1 ... 0.1 A | Product Net Width | 0.122 m |
| Product Net Height | 0.093 m | Product Net Depth / Length | 0.069 m |
| Product Net Weight | 0.26 kg | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2TAZ810306R3630 |
Specifications may be subject to change without notice
