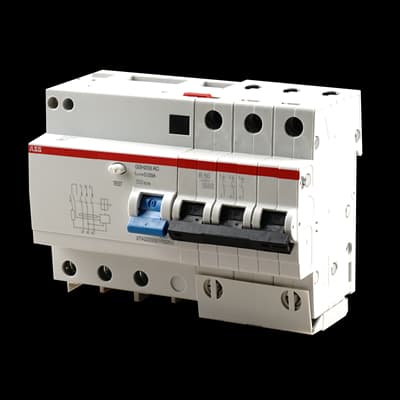

GSH203 A S-B63/0.1
Product ID:69141
Updated: 2026/4/3
Key Features
- 1Handle high currents and voltages for demanding systems. 2、Built with robust materials for long-lasting performance. 3、Meet IEC/EN 60947-2 and UL 1077 safety standards. 4、Suit residential, commercial, and industrial applications. 5、Feature compact DIN rail mounting for quick installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61009 GB 16917 | Tripping Characteristic | B |
| Type of Residual Current | Type A | Rated Operational Voltage | 400 V AC |
| Rated Current (In) | 63 A | Rated Residual Current | 100 mA |
| Rated Short-Circuit Capacity | 6 kA | Maximum Breaking Capacity | 6 kA |
| Number of Protected Poles | 3 | Number of Poles | 3 |
| Number of Earth Leakage Circuit Breakers (ELCBs) | 1 | Operating Characteristic | Selective |
| Release Type | B | Short-Circuit Current Rating (SCCR) | 100 mA |
| Product Net Width | 70 mm | Product Net Height | 0.093 m |
| Product Net Depth / Length | 69 mm | Product Net Weight | 0.59 kg |
| ETIM 8 | EC002281 - Distributor assembly with combination RCCB/MCB | ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363010 | eClass | V11.0 : 27400618 |
| Object Classification Code | F | Manufacturer ID | 2TAZ222306R3635 |
Specifications may be subject to change without notice
