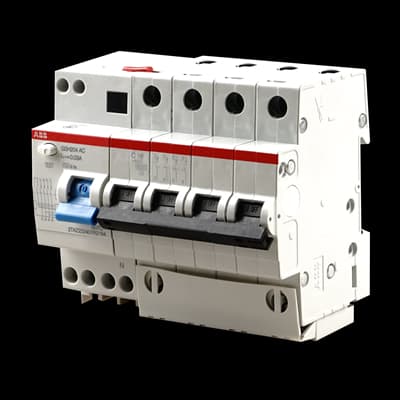

GSH204 AC-C25/0.03
Product ID:69150
Updated: 2026/4/3
Key Features
- 1Safeguard circuits with advanced overcurrent protection and precise tripping. 2、Ensure long-term reliability through robust industrial-grade construction. 3、Simplify setup with a quick and clear installation process. 4、Meet international safety standards like IEC 61009 for compliance. 5、Save panel space using a compact, high-functionality design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61009 GB 16917 | Tripping Characteristic | C |
| Type of Residual Current | Type AC | Rated Operational Voltage | 230 / 400 V AC |
| Rated Current (In) | 25 A | Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA | Maximum Breaking Capacity | 6 kA |
| Rated Frequency (f) | 50 ⦠60 Hz | Number of Protected Poles | 4 |
| Number of Poles | 4 | Number of Earth Leakage Circuit Breakers (ELCBs) | 1 |
| Operating Characteristic | Instantaneous | Position of Neutral Terminals | Right |
| Release Type | C | Short-Circuit Current Rating (SCCR) | 30 mA |
| Product Net Width | 125 mm | Product Net Height | 0.093 m |
| Product Net Depth / Length | 89 mm | Product Net Weight | 0.604 kg |
| ETIM 8 | EC002281 - Distributor assembly with combination RCCB/MCB | ETIM 9 | EC002281 - Distributor assembly with combination RCCB/MCB |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363010 | eClass | V11.0 : 27400618 |
| Object Classification Code | F | Manufacturer ID | 2TAZ222401R2254 |
Specifications may be subject to change without notice
