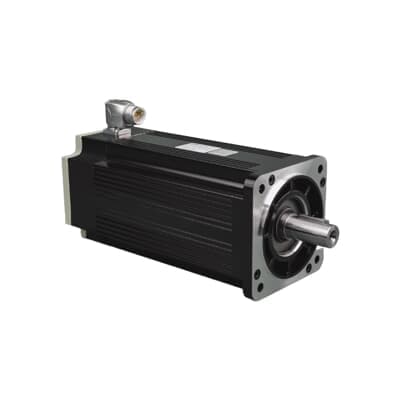

HDS130C-1829BD4KNN
Product ID:70435
Updated: 2026/4/3
Key Features
- 1Achieve high-precision motion control for demanding industrial automation. 2、Reduce operational costs with optimized energy efficiency up to 30%. 3、Maintain consistent high performance and torque across diverse applications. 4、Ensure reliable operation with genuine ABB quality and global certifications. 5、Simplify integration with seamless compatibility across ABB drive systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS130C-1829BD4KNN | CN8 | 85044088 |
| Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP54 | Flange Size Range | 130 mm |
| Frame Size | A | Global Commercial Alias | HDS130C-1829BD4KNN |
| Gross Weight | 11.95 kg | Input Voltage (Uin) | 400 V |
| Invoice Description | HDS series motor, 400 VAC, flange size 130 mm, high inertia, 2.9 kW, multi-turn Hiperface, key, no brake, no seal | Made To Order | No |
| Maximum Peak Current | 51 A | Maximum Peak Torque | 54 N·m |
| Maximum Speed | 4000 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 2.9 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Height | 231 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 190 mm | Product Name | HDS motor |
| Product Net Depth / Length | 301 mm | Product Net Height | 170 mm |
| Product Net Weight | 11.3 kg | Product Net Width | 130 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 14.8 A | Rated Speed | 1500 r/min |
| Rated Torque | 18 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 24 mm |
| Shaft Length | 50 mm | Short Description | HDS series motor, 400 VAC, flange size 130 mm, high inerita, 2.9 kW, multi-turn Hiperface, key, no brake, no seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00047711 |
Specifications may be subject to change without notice
