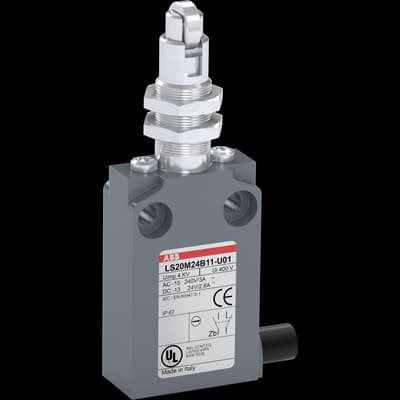

LS20M24B11-U01
Product ID:76097
Updated: 2026/4/3
Key Features
- 1Choose the compact 30mm width design for tight spaces. 2、Rely on durable zinc alloy (Zamak) construction. 3、Install quickly with the prewired 1m UL62 PVC cable. 4、Secure the unit easily using the two top mounting holes. 5、Achieve precise operation with snap-action contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 16 mm | Product Net Weight | 0.201 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | 90° crossed steel roller plunger with 2 x M12 fixing nuts |
| B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Metal |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million | Mounting Type | 30 mm |
| Number and Type of Bottom Cable Glands | Side (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
| Object Classification Code | B | ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 | UNSPSC | 39121500 |
| Manufacturer ID | 1SBV015524R2601 |
Specifications may be subject to change without notice
