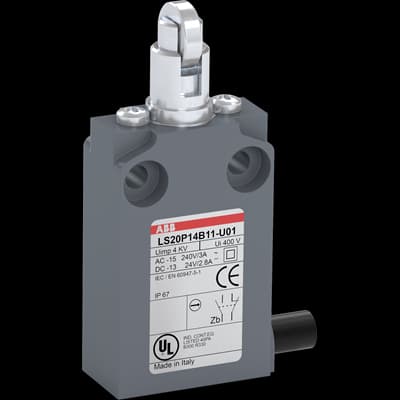

LS20P14B11-U01
Product ID:76004
Updated: 2026/4/3
Key Features
- 1Achieve high mechanical durability with up to 30 million operations. 2、Simplify installation with three versatile electrical connection types. 3、Ensure consistent performance via precise operating points. 4、Enhance safety and reliability with double insulation. 5、Fit into limited mounting spaces using a compact design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30 mm | Product Net Height | 70 mm |
| Product Net Depth / Length | 16 mm | Product Net Weight | 0.128 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | plain steel plunger with dust protective cup |
| B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million | Mounting Type | 30 mm |
| Number and Type of Bottom Cable Glands | Side (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
| Object Classification Code | B | ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 | UNSPSC | 39122213 |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch | Manufacturer ID | 1SBV015914R3801 |
