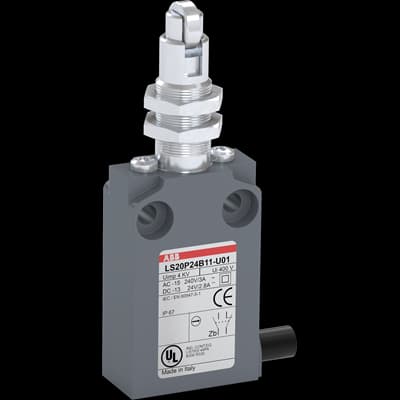

LS20P24B11-U01
Product ID:75821
Updated: 2026/4/3
Key Features
- 1Handle up to 30 million operations with robust mechanical contacts. 2、Ensure consistent and precise detection across diverse industrial applications. 3、Satisfy various designs with three electrical connection options. 4、Resist electromagnetic disturbances for stable performance in harsh conditions. 5、Achieve IP67 protection and double insulation for enhanced safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 16 mm | Product Net Weight | 0.145 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | 90° crossed steel roller plunger with 2 x M12 fixing nuts |
| B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Plastic |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million | Mounting Type | 30 mm |
| Number and Type of Bottom Cable Glands | Side (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
| Object Classification Code | B | ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 | UNSPSC | 39121500 |
| Manufacturer ID | 1SBV015924R3801 |
