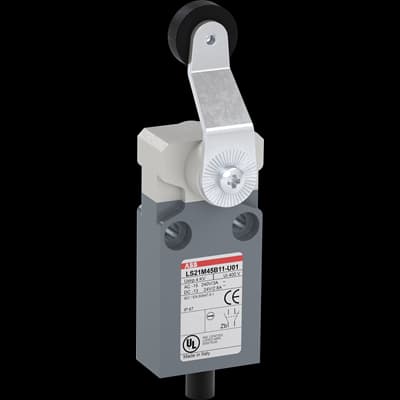

LS21M45B11-U01
Product ID:76107
Updated: 2026/4/3
Key Features
- 1Achieve high mechanical durability with up to 30 million operations. 2、Ensure precise operating points for consistent performance. 3、Simplify installation with three electrical connection types. 4、Fit into tight spaces using the compact 30 mm width design. 5、Rely on robust zinc alloy construction for long-term reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30 mm | Product Net Height | 102 mm |
| Product Net Depth / Length | 16 mm | Product Net Weight | 0.227 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | overhead plastic roller lever (Ã18 mm) |
| B10d Value | Operations 20 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP67 | Housing Material | Metal |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 10 million | Mounting Type | 30 mm |
| Number and Type of Bottom Cable Glands | Bottom (Prewired UL/IEC cable) | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A (125 V) 0.55 A (250 V) 0.27 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +70 °C |
| Object Classification Code | B | ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 | UNSPSC | 39122213 |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch | Manufacturer ID | 1SBV015645R2601 |
