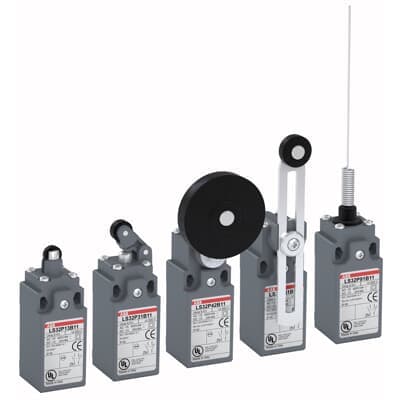

LS30P41-9055
Product ID:75979
Updated: 2026/7/14
Key Features
- 1Withstand harsh industrial environments with robust construction.
- 2Meet international standards and necessary certifications for compliance.
- 3Customize your setup with options like LED lighting and contact blocks.
- 4Simplify installation and maintenance using tool-free mounting features.
- 5Deploy reliably across various industries including cement and food processing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30 mm | Product Net Height | 116 mm |
| Product Net Depth / Length | 45 mm | Product Net Weight | 0.086 kg |
| B10d Value | Operations 30 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour |
| Mechanical Durability | 10 million | Pilot Duty UL/CSA | A600 Q600 |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Operational Current AC-15 (Ie) | (24 V) 10 A (240 V) 6 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V | Rated Operational Current DC-13 (Ie) | (24 V) 4 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A |
| Short-Circuit Protective Devices | gG Type Fuses 10 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -30 ... +80 °C |
| ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
| eClass | V11.0 : 27272601 | UNSPSC | 39121500 |
| Manufacturer ID | 1SBV010241R9055 |
Specifications may be subject to change without notice
