ABBTravel switch
In Stock

LS43P13B11

Product ID:76027
Updated: 2026/4/3

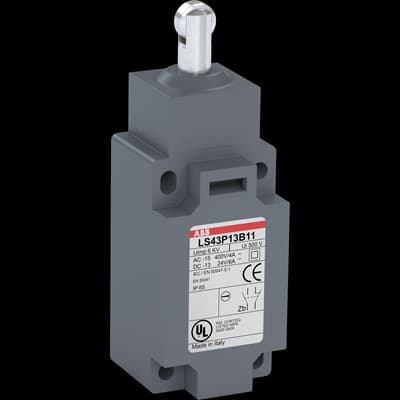

ABB LS43P13B11

Key Features

  • 1Enhance durability with a robust metal casing for environmental protection. 2、Ensure precise positioning and consistent travel limit detection. 3、Switch strong currents up to 10A for demanding applications. 4、Achieve IP66 protection against dust and water ingress. 5、Simplify integration with available integrated M12 connectors.
Product Details
LS43P13B11
ABB

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Product Net Width
41 mm
Product Net Height
117 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.139 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Snap Action Simultaneous
Actuator Type
steel roller plunger
B10d Value
Operations 50 Millions
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection
acc. to IEC 60529 IP65
Housing Material
Plastic
Maximum Electrical Switching Frequency
(AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts
1 NO, 1 NC
Mechanical Durability
10 million
Mounting Type
40 mm (EN 50041)
Number and Type of Bottom Cable Glands
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA
A600 Q600
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Operational Current AC-15 (Ie)
(230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)
(24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Ambient Air Temperature
Operation -25 ... +70 °C Storage -30 ... +80 °C
Object Classification Code
B
ETIM 6
EC000030 - End switch
ETIM 7
EC000030 - End switch
ETIM 8
EC000030 - End switch
eClass
V11.0 : 27272601
UNSPSC
39121500
Manufacturer ID
1SBV010713R1211

Specifications may be subject to change without notice
