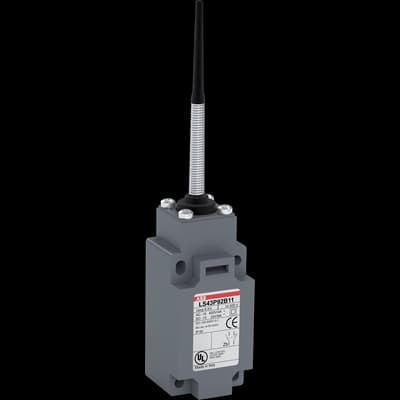

ABB LS43P92B11

Key Features

  • 1Use fiber-glass reinforced UL-V0 material for durability. 2、Operate precisely with a multidirectional stainless steel actuator. 3、Ensure IP65 protection against dust and water ingress. 4、Connect easily via 1 ISO M20x1.5 bottom cable entry. 5、Rely on 1 N.O + 1 N.C snap action contacts.
Product Details
LS43P92B11
ABB

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Product Net Width
41 mm
Product Net Height
195 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.131 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Snap Action Simultaneous
Actuator Type
multidirectional stainless steel spring with insulated tip
B10d Value
Operations 50 Millions
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection
acc. to IEC 60529 IP65
Housing Material
Plastic
Maximum Electrical Switching Frequency
(AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts
1 NO, 1 NC
Mechanical Durability
>5 million
Mounting Type
40 mm (EN 50041)
Number and Type of Bottom Cable Glands
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA
A600 Q600
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Operational Current AC-15 (Ie)
(230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)
(24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Ambient Air Temperature
Operation -25 ... +70 °C Storage -30 ... +80 °C
Object Classification Code
B
ETIM 6
EC000030 - End switch
ETIM 7
EC000030 - End switch
ETIM 8
EC000030 - End switch
eClass
V11.0 : 27272601
UNSPSC
39121500
Manufacturer ID
1SBV010792R1211

Specifications may be subject to change without notice
