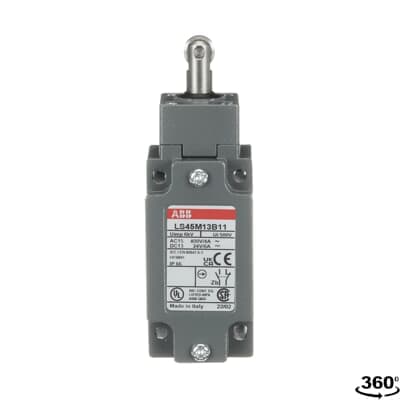

LS45M13B11
Product ID:75996
Updated: 2026/4/3
Key Features
- 1Achieve precise operation with high-performance snap action contacts. 2、Ensure durability using a stainless steel roller plunger actuator. 3、Protect against dust and water with an IP66 rated enclosure. 4、Operate reliably across a wide -25 to 70°C temperature range. 5、Maximize longevity with 30 million guaranteed operating cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 40 mm | Product Net Height | 120 mm |
| Product Net Depth / Length | 44 mm | Product Net Weight | 0.229 kg |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap action contacts | Actuating Force | Minimum Force acc. to IEC 60947-5-1 16 N |
| Actuation Speed | acc. to IEC 60947-5-1 Max. 0.5 m/s | Actuator Type | stainless steel roller plunger |
| Angular Head Adjustment | adjustable head every 90° | Angular Lever Adjustment | none |
| B10d Value | Operations 50 Millions | Climatic Withstand | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A | Connecting Capacity | Bar AWG 20 ... AWG 14 mm² Bar 0.5 ... 2.5 mm² |
| Consistency (Measured over 1 Million Operations) | 0.05 mm | Contact Element Form (acc. to IEC 60947-5-1) | Zb |
| Connecting Terminals (delivered in open position) | M3.5 (+,-) pozidriv 2 screw with cable clamp | Degree of Protection | acc. to IEC 60529 IP66 |
| Electrical Shock Protection acc. to IEC 536 | Class I | Housing Material | Metal |
| Maximum Electrical Switching Frequency | 3600 cycles per hour (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Mechanical Durability | 30 million | Mounting Type | 40 mm (EN 50041) |
| Mounting by Screws (not supplied) | 2 or 4 x M5 screws | Movement to be Detected | On end or 30° Cam Translation |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
| Number and Type of Bottom Cable Glands | 1/2 NPT cable gland | Operating Head Shape | C shape acc. EN 50041 |
| Pilot Duty UL/CSA | A600 Q600 | Positive Opening Operation Force (Direct Opening Action) | Minimum Force acc. to IEC 60947-5-1 48 |
| Positive Opening Operation of NC Contact(s) | Yes | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A | Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V | Rated Operational Current DC-13 (Ie) | (24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A |
| Resistance Between Contacts | 25 ms | Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Terminal Marking | according to EN 50013 | Terminal for Protective Conductor | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -30 ... +80 °C | Resistance to Shock acc. to IEC 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s² |
| Resistance to Vibrations | No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz | Object Classification Code | B |
| ETIM 6 | EC000030 - End switch | ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch | eClass | V11.0 : 27272601 |
| UNSPSC | 39122213 | IDEA Granular Category Code (IGCC) | 5202 >> Limit switch |
| Manufacturer ID | 1SBV013113R1211 |
