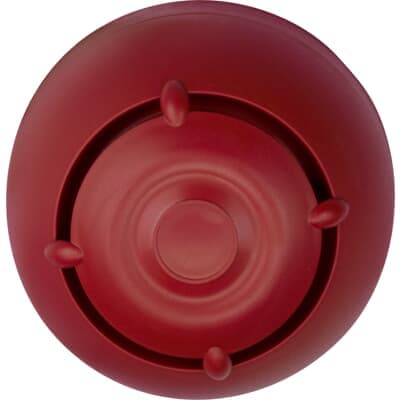

MS2
Product ID:82607
Updated: 2026/7/14
Key Features
- 1Achieve a high 107 dB(A) sound level for effective alerting.
- 2Reduce energy costs with low current consumption.
- 3Configure 32 operational modes via DIP switches.
- 4Monitor cable integrity with an integrated diode.
- 5Ensure durability with ABS (V0) housing and IP21C protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Auxiliary Voltage AC/DC | 24 V DC | Power Loss | 1.232 W |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 1 | Mounting Type | Surface Mounted |
| Manual Operation | No | Color | grey |
| Number of Batteries | 0 | Degree of Protection | IP20 |
| Product Net Width | 63 mm | Product Net Height | 63 mm |
| Product Net Depth / Length | 63 mm | Product Net Weight | 0.2 kg |
| ETIM 8 | EC000195 - Optical/acoustic signal device | ETIM 9 | EC000195 - Optical/acoustic signal device |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 8531 10 30 | eClass | V11.0 : 27143234 |
| Manufacturer ID | 2CDG220022R0011 |
Specifications may be subject to change without notice
