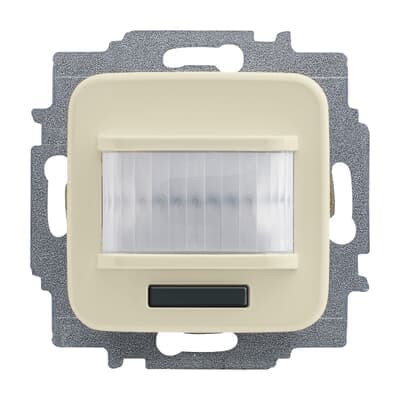

MSA-F-1.1.1-212-WL
Product ID:80504
Updated: 2026/7/14
Key Features
- 1Integrate wirelessly with the ABB-free@home system for effortless automation.
- 2Utilize a select lens for reliable detection that ignores small animals.
- 3Enable automatic switching based on movement and ambient brightness levels.
- 4Activate pre-configured switching functions without any prior programming.
- 5Program custom switch-off delays easily via the web interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Data Sheet, Technical Information | 2CKA001473B9110 | Number of Outputs | 1 |
| Number of Channels | 1 | Compatible Bus Systems | free@home wireless |
| Product Range | free@home | Minimum Switching Time | Switch-On 30 second [unit of time] |
| Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° | Product Net Width | 70.9 mm |
| Product Net Height | 52.3 mm | Product Net Depth / Length | 70.9 mm |
| Product Net Weight | 0.2 kg | Built-In Depth (t2) | 32 mm |
| ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CKA006200A0092 |
Specifications may be subject to change without notice
