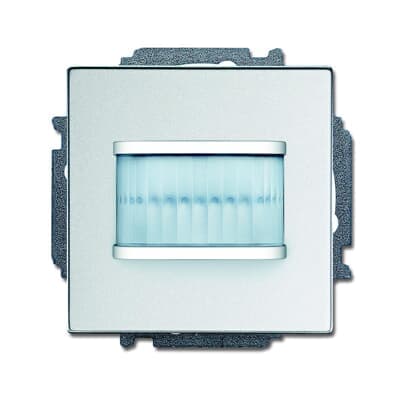

MSA-F-1.1.1-83
Product ID:87568
Updated: 2026/4/3
Key Features
- 1Automatically switch ABB-free@home actuators using movement and brightness. 2、Detect motion reliably with a select lens for animal access. 3、Program the switch-off delay via the System Access Point web interface. 4、Integrate seamlessly with optional wireless or wired connectivity versions. 5、Control 127 V~/230 V~ consumers efficiently with an integrated switch actuator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Data Sheet, Technical Information | 2CKA001173B8559 | Number of Outputs | 1 |
| Number of Channels | 1 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Minimum Switching Time | Switch-On 30 second [unit of time] |
| Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° | Product Net Width | 71 mm |
| Product Net Height | 71 mm | Product Net Depth / Length | 56 mm |
| Product Net Weight | 100 g | Built-In Depth (t2) | 32 mm |
| ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CKA006220A0216 |
Specifications may be subject to change without notice
