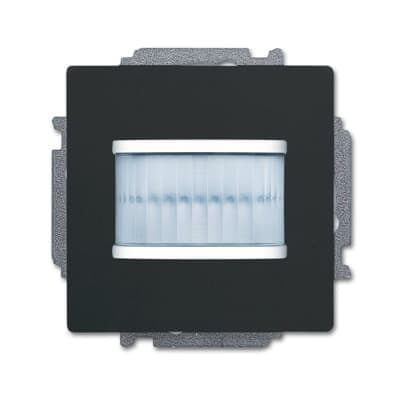

MSA-F-1.1.1-885
Product ID:89667
Updated: 2026/4/3
Key Features
- 1Communicate wirelessly with ABB-free@home systems for seamless smart home integration. 2、Automatically switch actuators based on detected movement and ambient brightness levels. 3、Control 230V~ consumers efficiently using the integrated switch actuator. 4、Adjust light detection thresholds for fully customizable automated lighting scenes. 5、Detect movement comprehensively with selectable lenses including animal access.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Number of Outputs | 1 | Number of Channels | 1 |
| Compatible Bus Systems | free@home (TP) | Product Range | free@home |
| Minimum Switching Time | Switch-On 30 second [unit of time] | Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° |
| Product Net Width | 71 mm | Product Net Height | 71 mm |
| Product Net Depth / Length | 56 mm | Product Net Weight | 100 g |
| Built-In Depth (t2) | 32 mm | ETIM 9 | EC001582 - Movement sensor for bus system |
| eClass | V11.0 : 27143144 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CKA006220A0633 |
Specifications may be subject to change without notice
