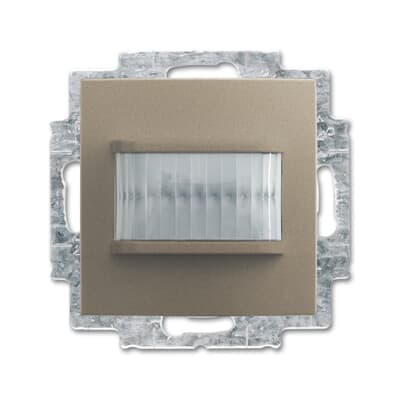

MSA-F-1.1.1-93
Product ID:92657
Updated: 2026/4/3
Key Features
- 1Utilize advanced detection technology with select lenses. 2、Automatically switch actuators based on movement and brightness. 3、Program the switch-off delay via the web interface. 4、Integrate seamlessly with an included switch actuator. 5、Install discreetly in compatible flush-mounted boxes.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Number of Outputs | 1 | Number of Channels | 1 |
| Compatible Bus Systems | free@home (TP) | Product Range | free@home |
| Minimum Switching Time | Switch-On 30 second [unit of time] | Number of Batteries | 0 |
| Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° | Product Net Width | 70.9 mm |
| Product Net Height | 52.6 mm | Product Net Depth / Length | 70.9 mm |
| Product Net Weight | 0.16 kg | Built-In Depth (t2) | 32 mm |
| ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CKA006220A0667 |
Specifications may be subject to change without notice
