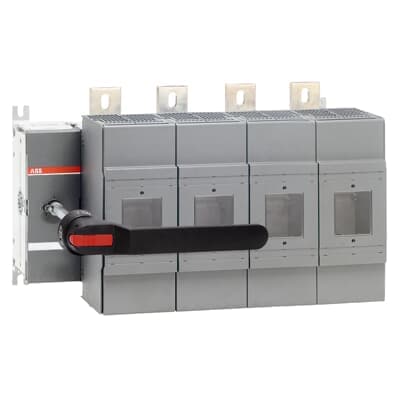

OS1250D04N2
Product ID:75456
Updated: 2026/7/14
Key Features
- 1Engineer performance for extreme conditions with reliable operation.
- 2Utilize self-cleaning contacts for a maintenance-free, long electrical life.
- 3Install easily using modular design for cost-efficient setup and use.
- 4Prevent electric shock with interlocking fuse covers for enhanced safety.
- 5Reduce installation time by up to 50% with time-saving snap-on accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 539 mm |
| Product Net Height | 356 mm | Product Net Depth / Length | 294 mm |
| Product Net Weight | 34.525 kg 76.11 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link | Fuse Size | NH4 |
| Fuse System | DIN | Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting | Number of Poles | 4 |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 75 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Current AC-21B (Ie) | (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A | Rated Operational Current AC-22B (Ie) | (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A | Rated Operational Current AC-23B (Ie) | (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 315 kW (400 V) 560 kW (415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW | Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 kiloampere rms | Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) | Terminal Type | Lug terminals |
| Terminal Width | 50 mm | Tightening Torque | 50 ... 75 N·m |
| Tightening Torque | 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA105247R1001 |
Specifications may be subject to change without notice
