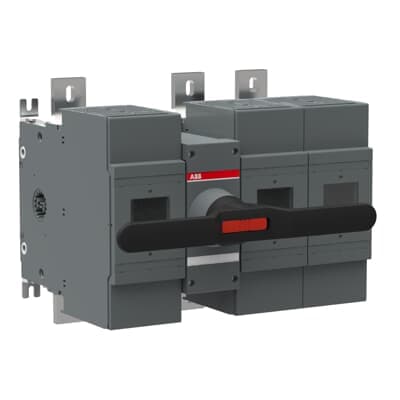

OS1250D12K
Product ID:74124
Updated: 2026/4/3
Key Features
- 1Handle up to 1250 Amperes for robust circuit protection. 2、Accommodate DIN, BS, NFC, CC, JJ, and L fuse types. 3、Utilize a compact design measuring 365x429x356 mm. 4、Construct with durable materials for extended operational life. 5、Integrate easily into existing electrical setups for quick installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 365 mm | Product Net Height | 429 mm |
| Product Net Depth / Length | 356 mm | Product Net Weight | 29.2 kg |
| Fuse Size | NH4 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 3 |
| Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 75 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | 50 ... 75 N·m |
| Tightening Torque | 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA149908R1001 |
Specifications may be subject to change without notice
