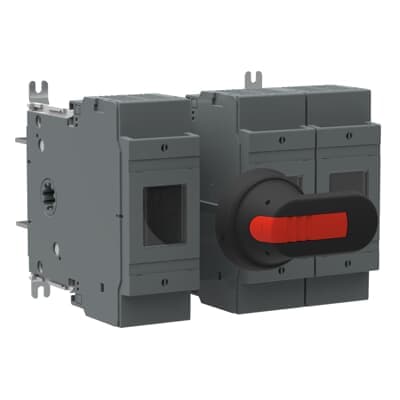

OS250D03BB-KD
Product ID:75427
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with standard DIN rail configurations. 2、Provide reliable 3-pole safety protection against short circuits. 3、Meet high safety standards required in demanding industrial settings. 4、Deliver maximum protection with a specialized connected switch fuse design. 5、Enhance system reliability through robust and durable construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.53 kg | Fuse Size | NH0 NH1 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 13 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA114772R1001 |
Specifications may be subject to change without notice
