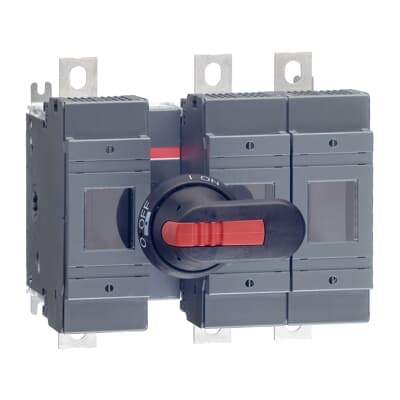

OS250D12/B60
Product ID:74261
Updated: 2026/4/3
Key Features
- 1Provide advanced 3-pole protection for electrical systems. 2、Operate easily with the front-handled mechanism. 3、Ensure high reliability using the DIN fuse system. 4、Install versatilely with compact 206x199x154 mm dimensions. 5、Customize protection with NH0 and NH1 fuse sizes.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 234 kg | Fuse Size | NH0 NH1 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 13 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA156571R1001 |
Specifications may be subject to change without notice
