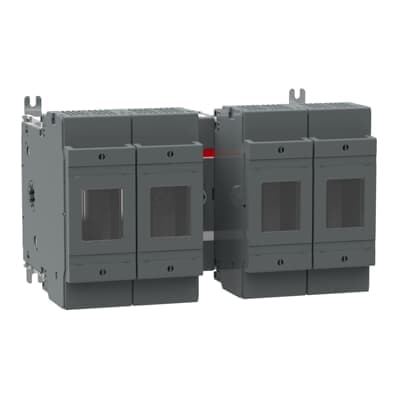

OS250D22BBN2
Product ID:75021
Updated: 2026/4/3
Key Features
- 1Ensure reliable circuit protection with the industrial-grade ABB OS250D22BBN2 switch fuse. 2、Enhance system safety using the special connected switch design. 3、Achieve consistent performance under demanding industrial conditions. 4、Prevent electrical hazards with integrated advanced safety features. 5、Reduce long-term costs with its durable, high-quality construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 260 mm |
| Product Net Height | 193 mm | Product Net Depth / Length | 189 mm |
| Product Net Weight | 4.31 kg 9.5 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link | Fuse Size | NH0 NH1 |
| Fuse System | DIN | Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting | Number of Poles | 4 |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Back In - Back Out | Power Loss | at Rated Operating Conditions per Pole 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A (690 V) 250 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW (400 V) 140 kW (415 V) 145 kW (500 V) 170 kW (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 690 V AC | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 | Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals | Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m | Tightening Torque | 30 ... 44 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA102204R1001 |
Specifications may be subject to change without notice
