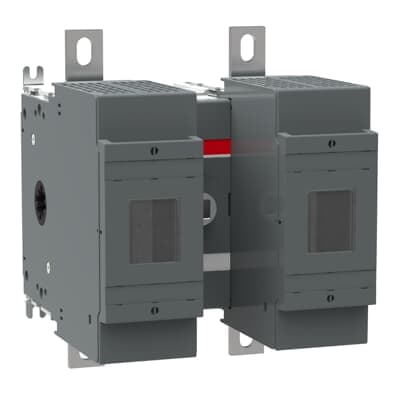

OS400D11
Product ID:75242
Updated: 2026/4/3
Key Features
- 1Operate easily from the front for safe and convenient handling. 2、Utilize a 2-pole configuration suitable for diverse industrial applications. 3、Ensure reliability and consistency with full DIN standard compliance. 4、Save valuable panel space with compact 190x230x193 mm dimensions. 5、Select your own handle and shaft for flexible installation requirements.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 190 mm |
| Product Net Height | 230 mm | Product Net Depth / Length | 193 mm |
| Product Net Weight | 5.1 kg | Cable Cross-Section | 2.5 ... 25 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
| Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
| Number of Poles | 2 | Operating Mode | Front Operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 30 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 400 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 400 A (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW (400 V) 220 kW (415 V) 230 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms | Standards | IEC 60947-3 |
| Switches Operating Mechanism | 11 (Between the Poles) | Terminal Type | Lug terminals |
| Terminal Width | 25 mm | Tightening Torque | 30 ... 44 N·m |
| Tightening Torque | 30 ... 44 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA110201R1001 |
