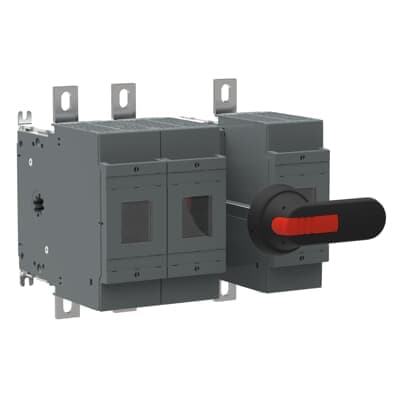

OS400D21P
Product ID:75694
Updated: 2026/7/14
Key Features
- 1Ensure reliable operation in low-voltage applications.
- 2Enhance safety with a robust 3-pole design.
- 3Achieve efficient operation through fusible disconnect protection.
- 4Protect the handle with IP65 rating for durability.
- 5Secure the system by padlocking in the OFF-position.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 193 mm | Product Net Height | 255 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 6.7 kg |
| Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 3 |
| Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
| Tightening Torque | 30 ⦠44 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA150268R1001 |
Specifications may be subject to change without notice
