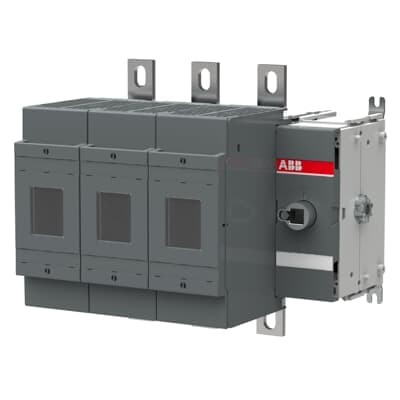

OS400D30-3
Product ID:75003
Updated: 2026/4/3
Key Features
- 1Provide robust protection against short circuits and overcurrents. 2、Enable easy front-operated switching for convenient use. 3、Handle high-voltage applications with 12 kV impulse withstand. 4、Ensure durability with a rugged DIN fuse system construction. 5、Meet IEC 60947-3 and RoHS standards for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 270 mm | Product Net Height | 240 mm |
| Product Net Depth / Length | 206 mm | Product Net Weight | 5.865 kg |
| Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 3 |
| Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
| Tightening Torque | 30 ⦠44 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022780R3870 |
Specifications may be subject to change without notice
