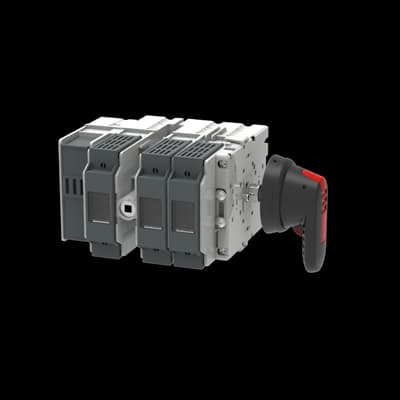

OS40FDS40000N1
Product ID:86803
Updated: 2026/7/14
Key Features
- 1Protect motors reliably in extreme conditions for continuous operation.
- 2Install and maintain easily with modular design, cutting time by 50%.
- 3Prevent electric shock with interlocking fuse covers for enhanced safety.
- 4Ensure safe operation with a high insulation voltage of 1000 V.
- 5Meet quality and reliability standards with IEC 60947-3 compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SCC311002D0201 | Pollution Degree | 3 |
| Product Net Width | 126 mm | Product Net Height | 97 mm |
| Product Net Depth / Length | 141 mm | Product Net Weight | 0.8 kg |
| Cable Cross-Section | 2.5 ... 25 mm² | Connecting Capacity | Stranded 0.75 ⦠10 mm² Flexible 0.75 ⦠10 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A | Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Fourth Pole Position | Left Side | Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | NH000 | Fuse System | DIN |
| Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Side Operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 3.5 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 40 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 40 A (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-23A (Ie) | (500 V) 40 A (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW (400 V) 18.5 kW (415 V) 18.5 kW (500 V) 22 kW (690 V) 30 kW | Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms | Standards | IEC 60947-3 |
| Switches Operating Mechanism | 40 (Right Side) | Terminal Type | Screw Terminals |
| Tightening Torque | 2 N·m | Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in |
| Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in | Tightening Torque | 2 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA108954R1001 |
Specifications may be subject to change without notice
