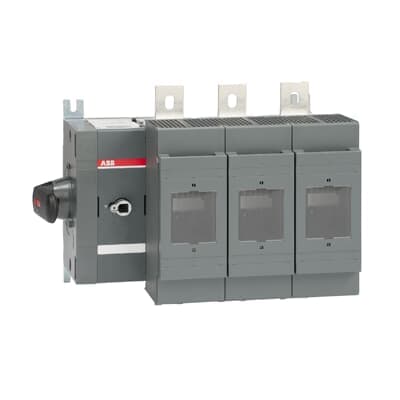

OS630BS03K
Product ID:74170
Updated: 2026/4/3
Key Features
- 1Meet British Standard requirements for compliant fuse system operation. 2、Operate safely with the included direct mounted handle. 3、Protect 3-pole applications to enhance system reliability. 4、Handle high thermal currents up to 630A conventional rating. 5、Support sustainability with UL 2799 zero waste validation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 414 mm |
| Product Net Height | 306 mm | Product Net Depth / Length | 247 mm |
| Product Net Weight | 13.9 kg | Cable Cross-Section | 0.75 ... 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Fuse Size | C1-C2 | Fuse System | British Standard |
| Handle Type | Direct mounted handle included | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Side Operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 46 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 630 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 V) 355 kW (415 V) 355 kW (500 V) 450 kW (690 V) 630 kW | Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 18 kiloampere rms | Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) | Terminal Type | Lug terminals |
| Terminal Width | 39 mm | Tightening Torque | 50 ... 75 N·m |
| Tightening Torque | 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA108142R1001 |
