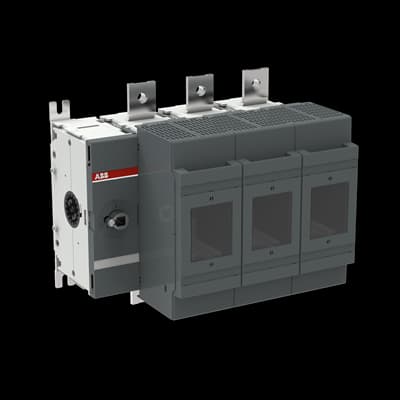

OS630D03-3
Product ID:74696
Updated: 2026/7/14
Key Features
- 1Deliver high reliability with a 630 A rated current at 500 V.
- 2Save installation space using a compact design for smaller enclosures.
- 3Simplify installation with a front-operated mechanism and DIN fuse system.
- 4Ensure safety and performance meeting IEC 60947-3 standards.
- 5Handle high short-time withstand currents up to 80 kA at 690 V.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 13.63 kg | Fuse Size | NH2 NH3 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 46 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 50 ⦠75 N·m | Tightening Torque | 50 ⦠75 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA114729R1001 |
Specifications may be subject to change without notice
