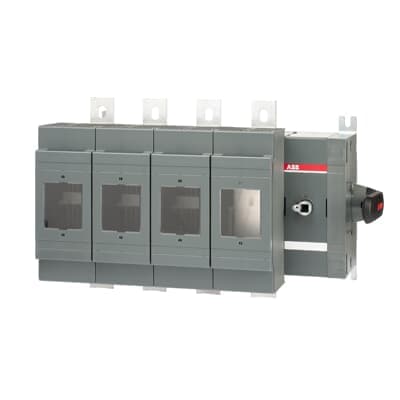

OS630D13N2-60
Product ID:74236
Updated: 2026/7/14
Key Features
- 1Handle high currents up to 630A for 380-415V, 500V, and 690V systems.
- 2Operate the front-mounted mechanism easily for quick access and control.
- 3Mount conveniently on DIN rails for versatile and space-saving installation.
- 4Benefit from an IP20 enclosure rating for enhanced operational safety.
- 5Ensure reliable protection with compatibility for Class J fuses.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 17.33 kg | Fuse Size | NH2 NH3 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 4 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 46 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 50 ⦠75 N·m | Tightening Torque | 50 ⦠75 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA110994R1001 |
Specifications may be subject to change without notice
