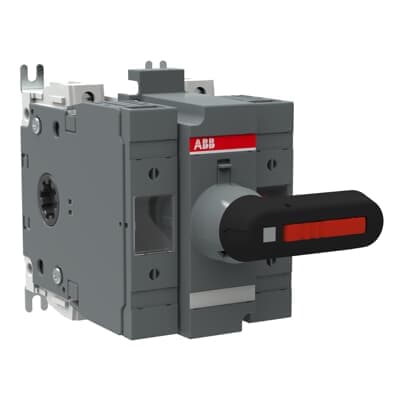

OS63GD11K
Product ID:74924
Updated: 2026/4/3
Key Features
- 1Protect against short circuits and overcurrents with advanced safety features. 2、Ensure versatility by being compatible with DIN, BS, NFC, CC, JJ, and L fuse types. 3、Cater to various needs with amperages ranging from 20 to 1250 Amperes. 4、Simplify installation and maintenance through manual operation. 5、Select devices precisely using over 1800 tested coordination tables.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 165 mm | Product Net Height | 91 mm |
| Product Net Depth / Length | 112 mm | Product Net Weight | 0.88 kg |
| Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 2 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m 4 N·m | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
| Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Tightening Torque | 3 N·m 4 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA128855R1001 |
Specifications may be subject to change without notice
