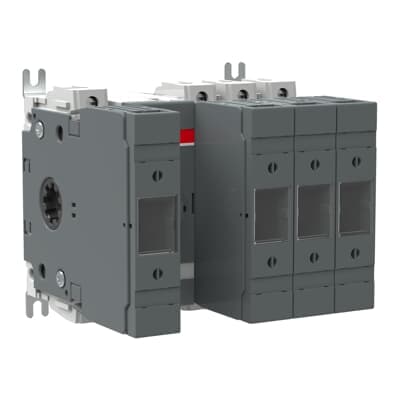

OS63GD13N2
Product ID:74200
Updated: 2026/4/3
Key Features
- 1Ensure reliability and efficiency in smart grid applications. 2、Deliver high performance and extended operational durability. 3、Protect critical infrastructure projects from electrical faults. 4、Meet stringent international safety and compliance standards. 5、Integrate seamlessly with a wide range of smart grid technologies.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 121 mm | Product Net Height | 138 mm |
| Product Net Depth / Length | 112 mm | Product Net Weight | 1.2 kg |
| Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Fuse Size | NH000 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 4 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m 4 N·m | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
| Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Tightening Torque | 3 N·m 4 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA123065R1001 |
Specifications may be subject to change without notice
