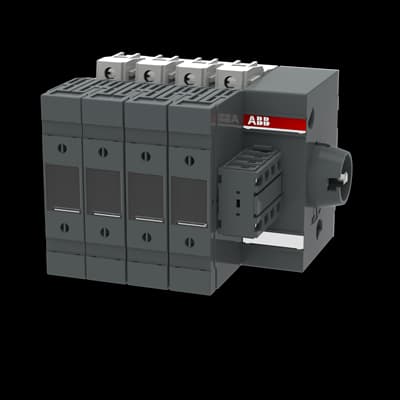

OS63GDSL40FMNS
Product ID:84677
Updated: 2026/7/14
Key Features
- 1Achieve reliable operation with high thermal current ratings up to 63A.
- 2Ensure durability through robust construction with excellent mechanical properties.
- 3Meet safety standards with NFPA 79 compliance for main disconnecting means.
- 4Select the ideal configuration from flange or shaft-operated models.
- 5Enhance performance and safety in critical low-voltage network applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 1.2 kg | Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² |
| Fuse Size | NH000 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Side Operated | Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Screw Terminals | Tightening Torque | 3 N·m 4 N·m |
| Tightening Torque | 3 N·m 4 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA124601R1001 |
Specifications may be subject to change without notice
